12x24 Marble-look porcelain floor over a stripped slab
Atlanta, GA · September 2026
We removed the existing ceramic tile and carpet as part of the client’s suite remodel and prepared the concrete slab for the new installation. Because the concrete had some existing cracks, we applied MAPEI Mapelastic CI Crack Isolation Membrane to help reduce the risk of crack transfer through the new tile. We then installed 12x24 Trinity Milos Calacatta porcelain tile using premium thinset mortar and a tile leveling system to minimize lippage and achieve a clean, even finish.
- Location
- Atlanta, GA
- Completed
- September 2026
- Approximate area
- 480 sq ft
- On site
- 2
- Property
- Commercial
Before and after
The problem
The client was remodeling the suite, including the lobby area, and wanted to replace the existing ceramic tile and carpet with a new, modern porcelain tile floor.
Preparation

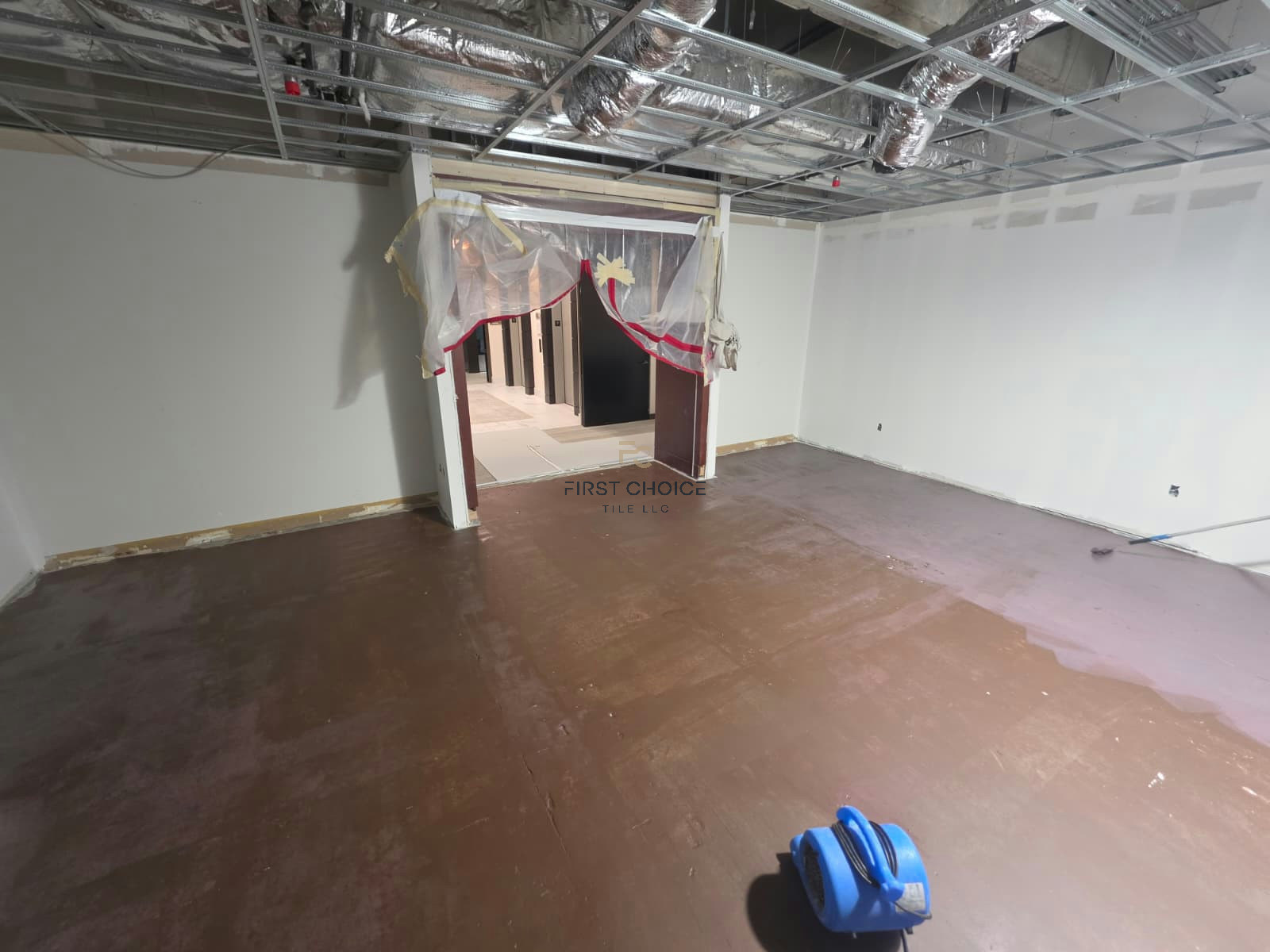

After removing the existing ceramic tile and carpet, we exposed the concrete slab. The concrete had some existing cracks that required additional preparation before the new tile installation.
Waterproofing: None, waterproofing was not required for this installation.
Installation

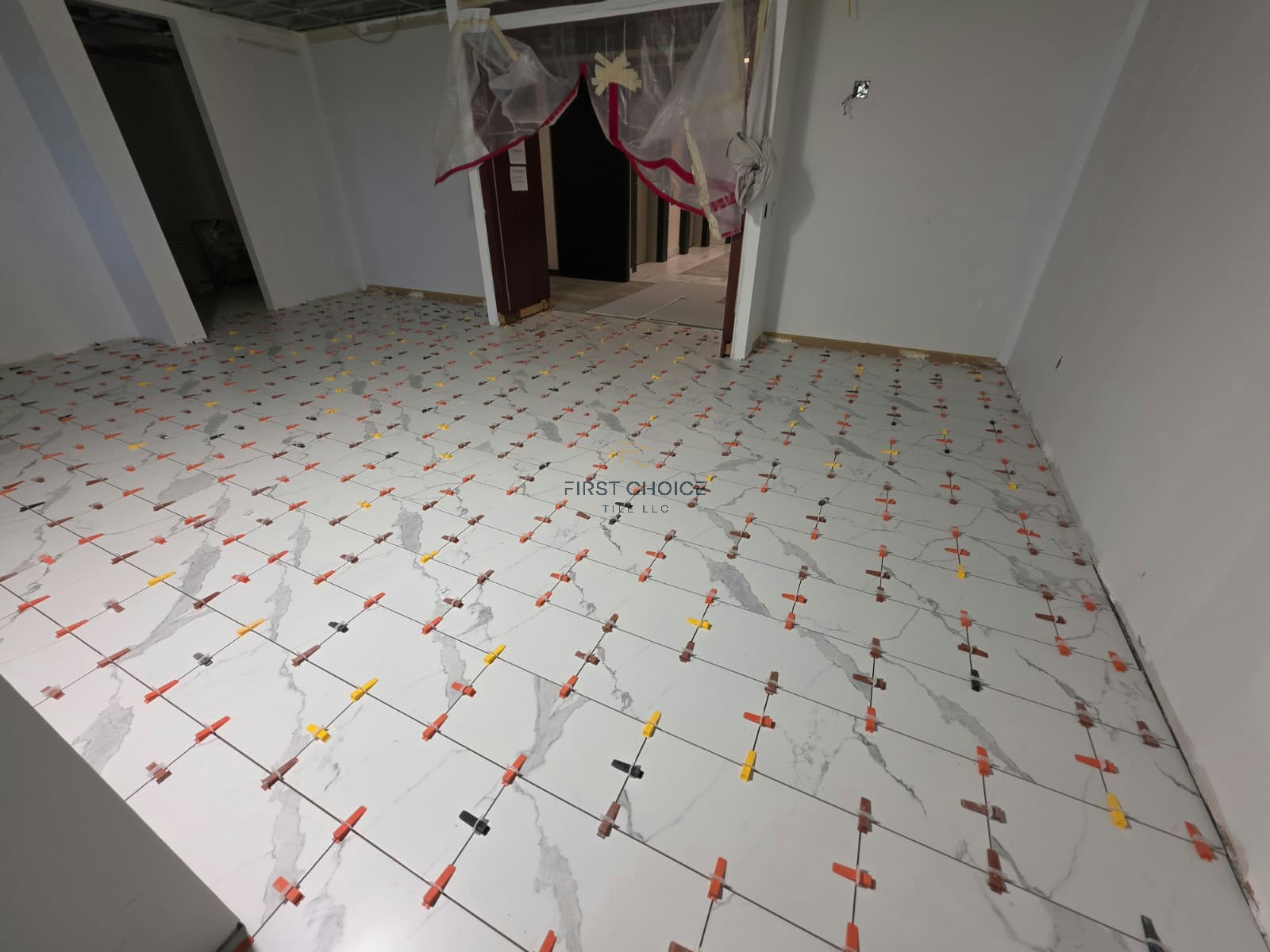

We properly prepared the concrete substrate and applied MAPEI Mapelastic CI Crack Isolation Membrane over the cracked areas to help reduce the risk of cracks transferring through the new tile. The 12x24 porcelain tile was installed using premium thinset mortar, along with tile leveling spacers to keep the tiles flush, minimize lippage, and achieve a clean, even surface.
Tile or plank size: 12x24
Floor heating: None
Materials used
- Trinity Milos Calacatta 12x24 Porcelain Tile
- Premium Thinset Mortar Ardex X4
- Tile Leveling Spacers
- MAPEI Mapelastic CI Crack Isolation Membrane
During the work

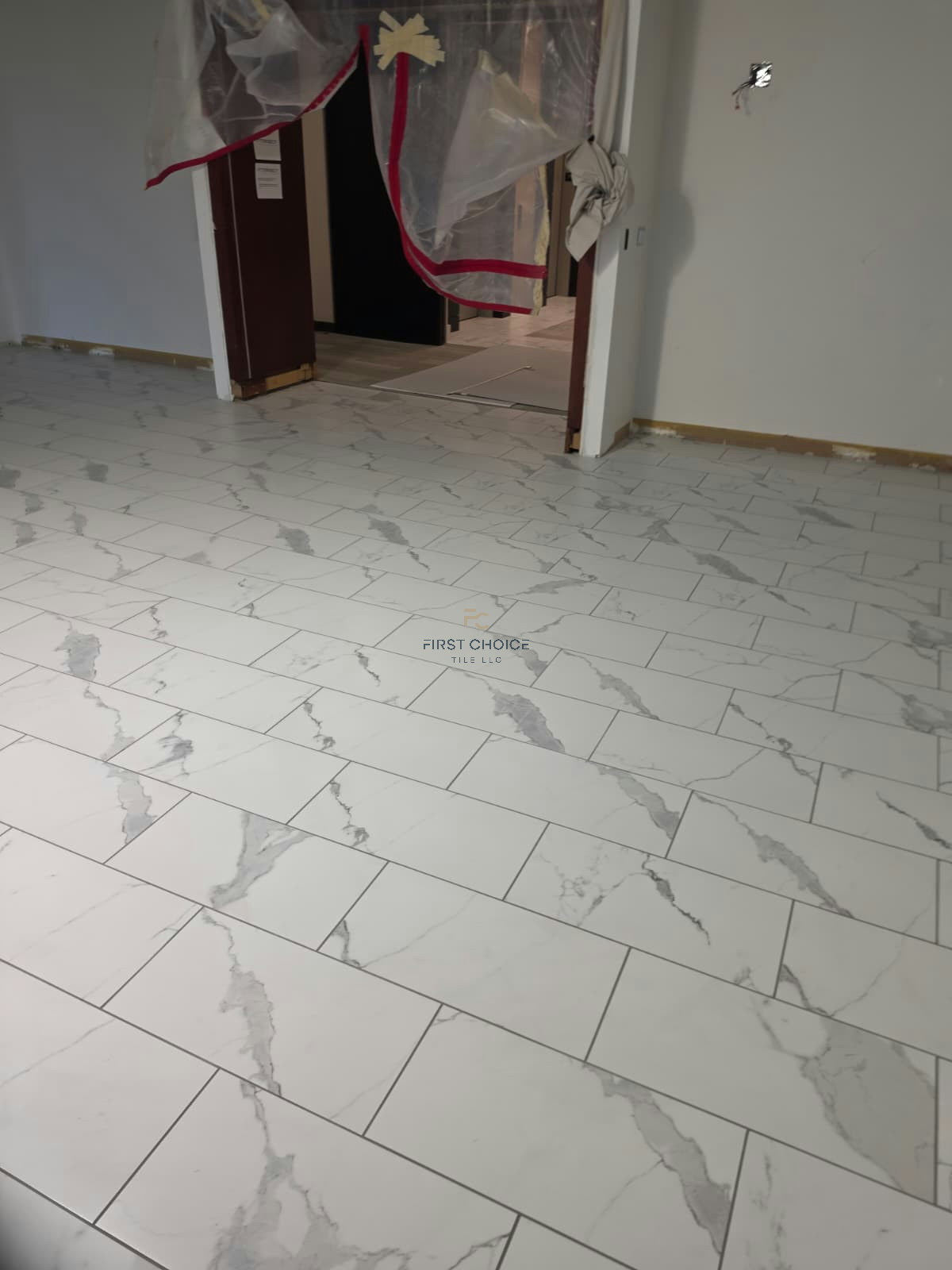

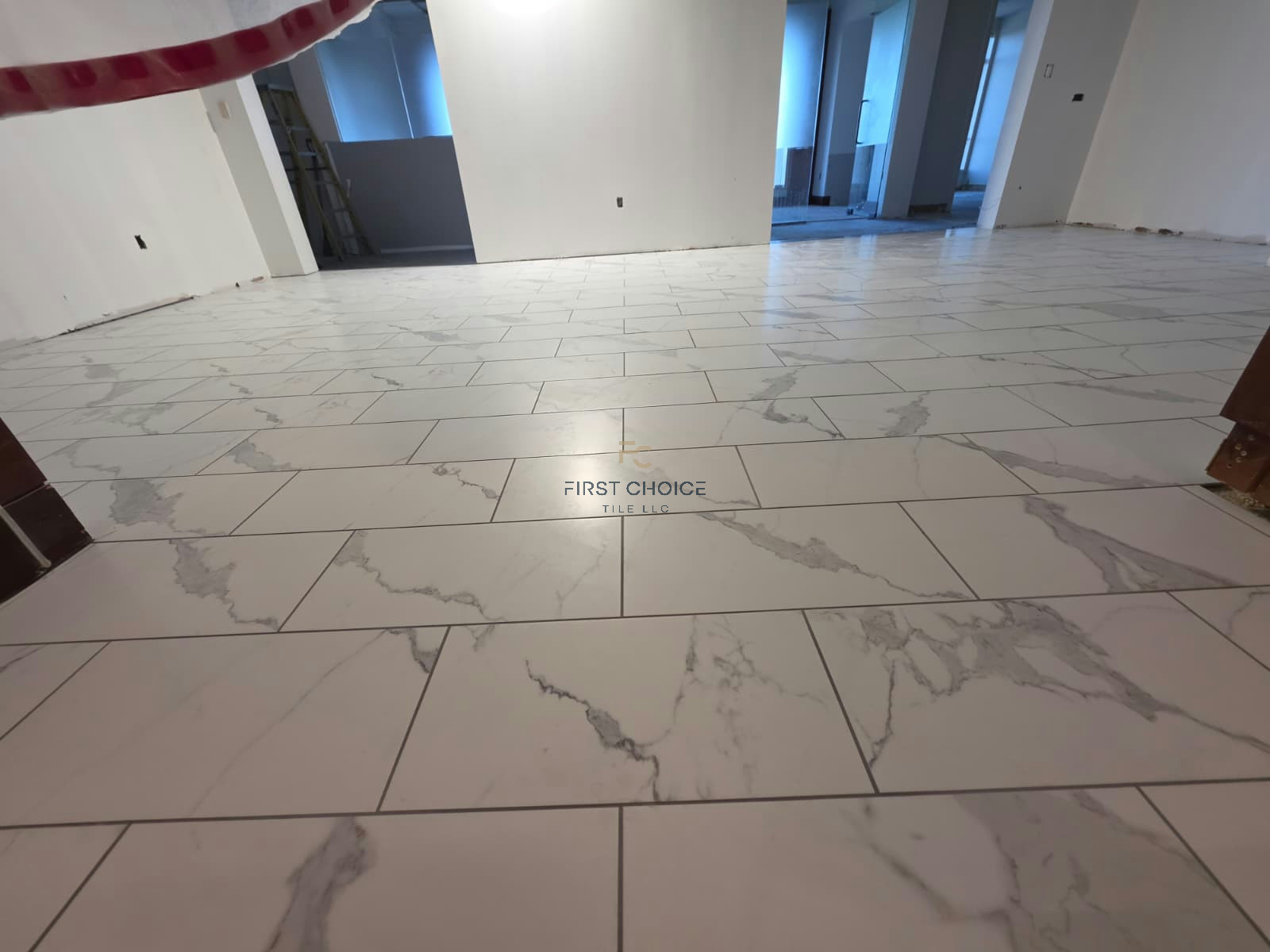

The finished work
